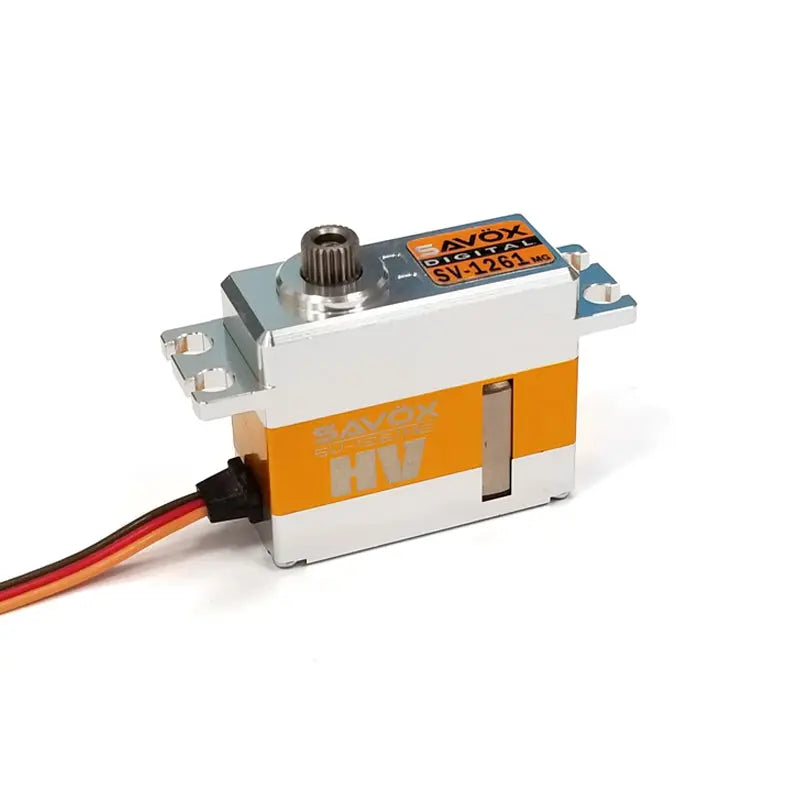

Savox SV1261MG Mini Digital High Voltage Aluminum Case Servo

by Savox
Original price $92.99 - Original price $92.99
Original price
$92.99
$92.99 - $92.99
Current price $92.99
Availability:
in stock, ready to be shipped
Mini Hi Torque High Voltage Digital Servo 0.095sec / 277oz @ 7.4V

The new SV1261MG takes the performance of the SV1260MG and utilizing the same size case, increased the torque to a whopping 277oz/in while maintaining an impressive 0.095 second transit time. Primarily intended for air applications, this powerhouse can also be used in specialty cars, trucks, and boats and is intended to be used on direct 7.4V LiPo current.

Features:

  • Metal gear train provide durability against heavy use
  • Capable of HV operation
  • All aluminum case provides strength and cooler operating temperatures
Specifications:
  • Torque @ 7.4v: 20.0kg/277oz./in
  • Speed @ 7.4v: 0.095 sec/60 deg

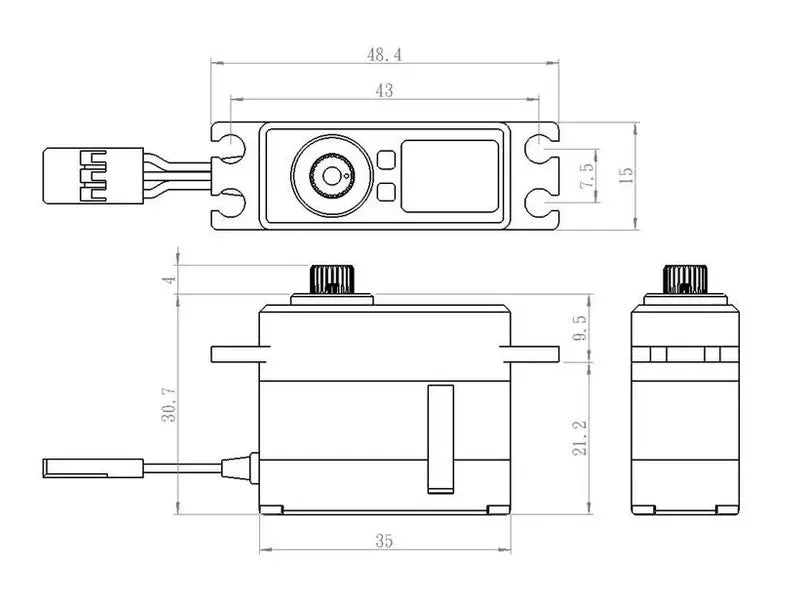

  • Dimensions L x W x H (mm): 35 x 15 x 30.7
  • Weight: 40.0g / 1.4 oz
Technical Specs:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 4000mA @6.0 V, 4700mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 165° (800 → 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
