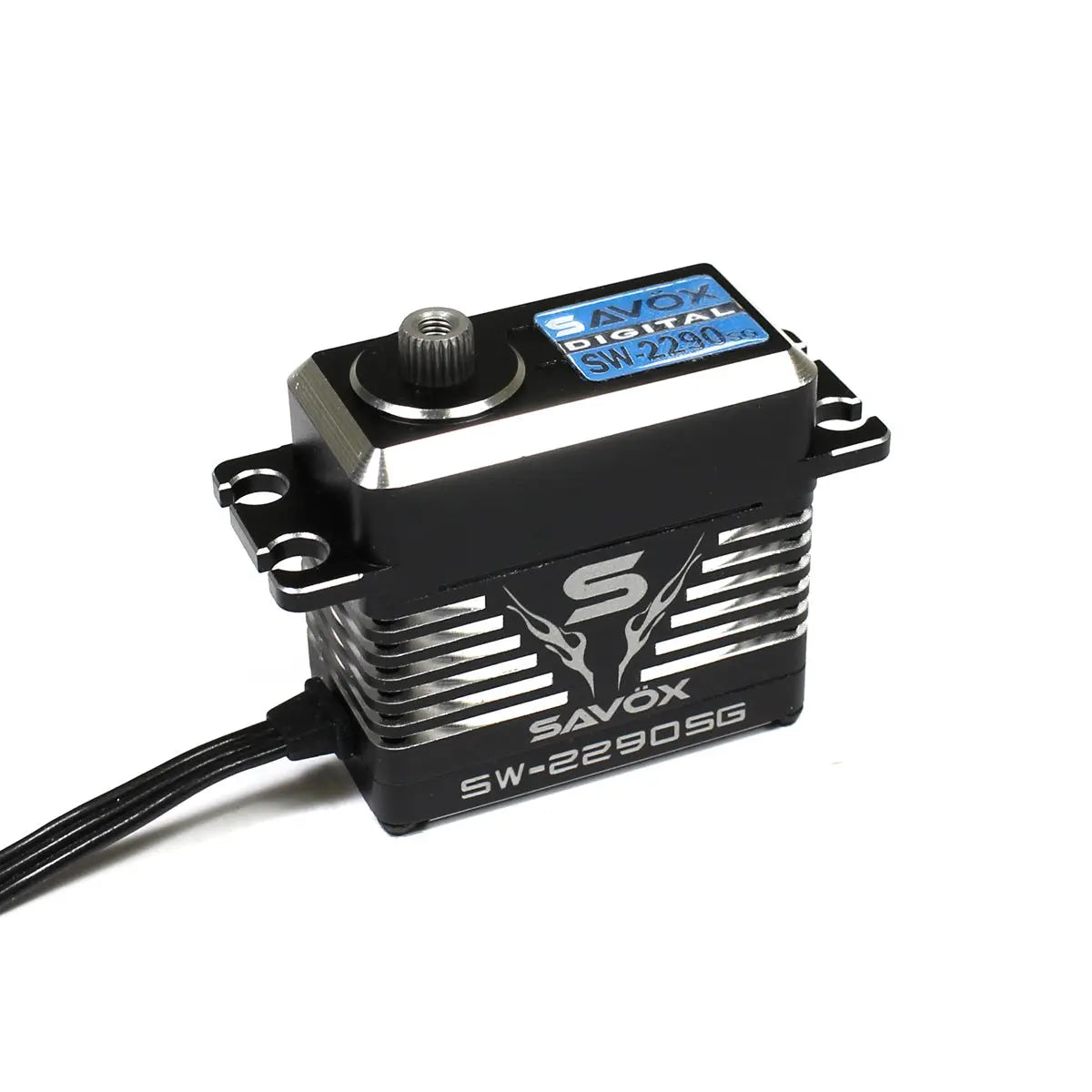

Savox SW2290SG-BE Waterproof Monster Torque High Voltage, Brushless, Digital Servo

by Savox
Original price $152.99 - Original price $152.99
Original price
$152.99
$152.99 - $152.99
Current price $152.99
Availability:
in stock, ready to be shipped
Waterproof Premium, High Voltage, Brushless, Digital Servo 0.11sec / 972.1oz @ 8.4v - Black Edition

Features:

  • Waterproof (IP67)
  • Full Aluminum Case
  • 3 Precision Ball Bearings
  • Unique Steel Gears
  • Specifications:

  • Torque @ 7.4v - 55kg / 763.8oz-in
  • Speed @ 7.4v - 0.13 sec / 60deg
  • Torque @ 8.4v - 70kg / 972.1oz-in
  • Speed @ 8.4v - 0.11 sec / 60deg

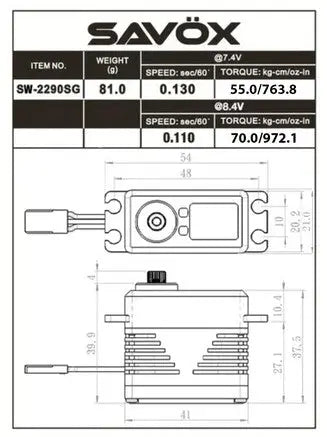

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
  • Weight: 81g

  • Technical Specs:
    • Operating Temperature: 14° - 122°F (-10° - 50°C)
    • Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
    • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
    • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
    • Wire Length: 300 +/- 5mm
    • Output Gear Spline: 25 Tooth
    • Bearings: 2BB
    • Operating Travel: 100° (1000 → 2000 µ second)
    • Neutral Position: 1500 µ second
    • Pulse Width Range: 800 → 2200 µ second
    • Maximum Travel: Appx 130° (900 → 2100 µ second)
    • Refresh Rate: 333 Hz
    • Motor Type: Brushless
