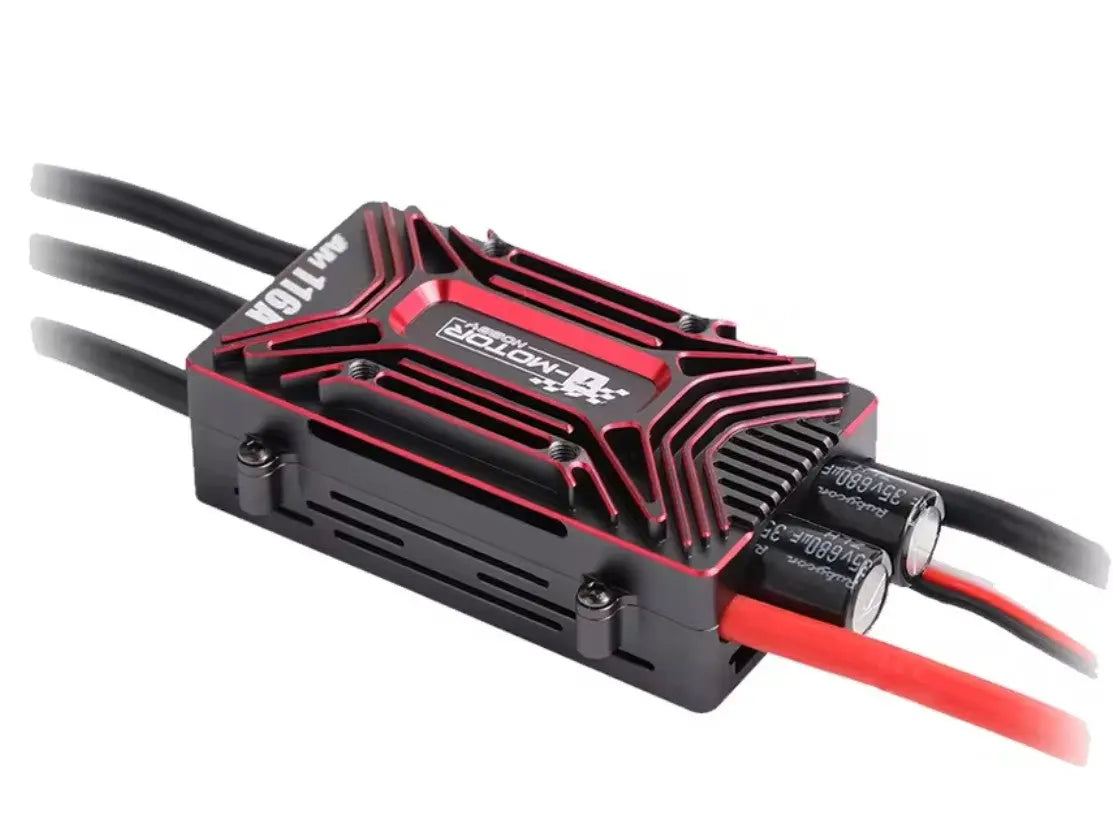

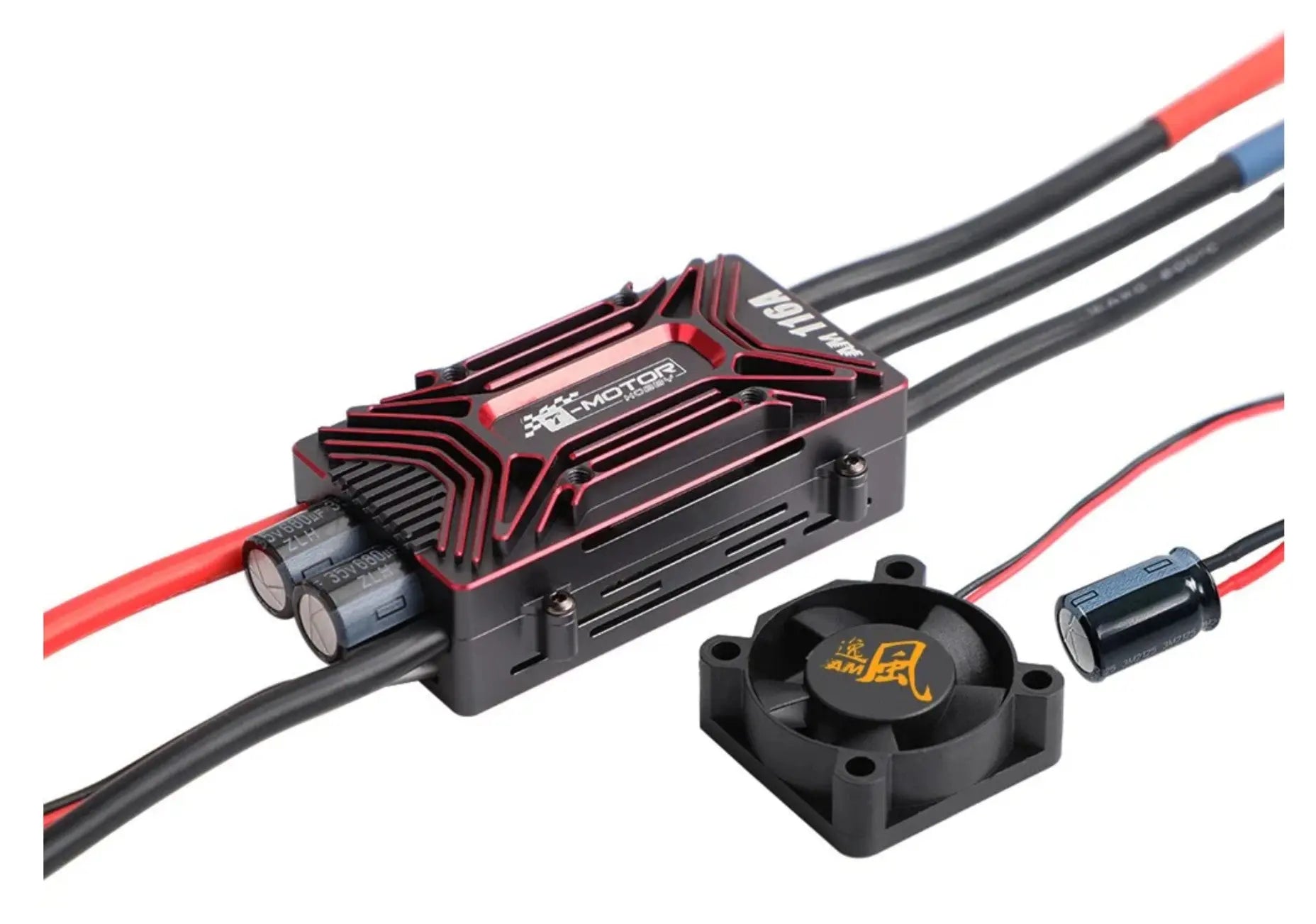

T-Motor / T-Hobby AM116A Brushless ESC

T-Motor / T-Hobby AM116A 116A 3–8S ESC for 60–70" 3D RC Airplanes

The T-Motor / T-Hobby AM116A 116A ESC is a competition-grade electronic speed controller engineered for 60–70 inch 3D RC airplanes, freestyle aircraft, and high-performance aerobatic models. Designed for pilots who demand immediate throttle response, smooth power delivery, and dependable servo power, the AM116A is an ideal choice for serious 3D and freestyle applications.

Supporting 3S–8S LiPo batteries, the AM116A delivers a 116A continuous current rating with up to 136A peak current, providing the power capacity needed for demanding aerobatic setups. A high-performance 48MHz ARM 32-bit processor and AM32 firmware help provide smooth throttle linearity and extremely fast response for maneuvers such as hovering, harriers, rollers, waterfalls, and aggressive vertical transitions.

The AM116A also features a powerful integrated 15A UBEC with up to 25A burst output, eliminating the need for a separate external BEC in many installations. The BEC voltage can be adjusted between 5.8V, 7.4V, and 8.2V, making the ESC well suited for modern high-torque and high-voltage digital servos commonly used in large 3D aircraft.

Designed as part of T-Hobby's AM Series power system, the AM116A pairs especially well with motors such as the T-Hobby AM600 and AM670. It also supports the T-Hobby AM Link, allowing compatible ESC programming and data access through supported Windows and Android software.

Key Features:

• 116A continuous-current fixed-wing ESC

• 136A peak current

• Supports 3S–8S LiPo batteries

• Designed for approximately 60–70" / 70E–90E 3D RC airplanes

• Optimized for 3D, freestyle, and aerobatic flying

• High-performance 48MHz ARM 32-bit processor

• AM32 firmware for smooth and responsive motor control

• Rapid throttle response for demanding 3D maneuvers

• Integrated 15A UBEC

• Up to 25A burst BEC output

• Adjustable BEC voltage: 5.8V / 7.4V / 8.2V

• Supports high-voltage and high-torque digital servos

• Compatible with the T-Hobby AM Link programming interface

• Windows and Android programming support

• Recommended for T-Hobby AM600 and AM670 motors

• Approximate dimensions: 75.1 x 42.2 x 21.8 mm

• Approximate weight: 113 g

• 12AWG power and motor wiring

• 4.0mm female motor connectors

For pilots building a high-performance 60", 64", 67", or 70" electric 3D airplane, the T-Hobby AM116A ESC delivers the current capacity, powerful adjustable BEC, and responsive throttle control needed for demanding aerobatic flight. When paired with an AM600 or AM670 motor, the AM116A creates a powerful and highly responsive T-Hobby power system built for precision 3D, freestyle, and aggressive aerobatic performance.

Click here to download the programming manual

Click here to download the AM Series ESC tuning parameter description
