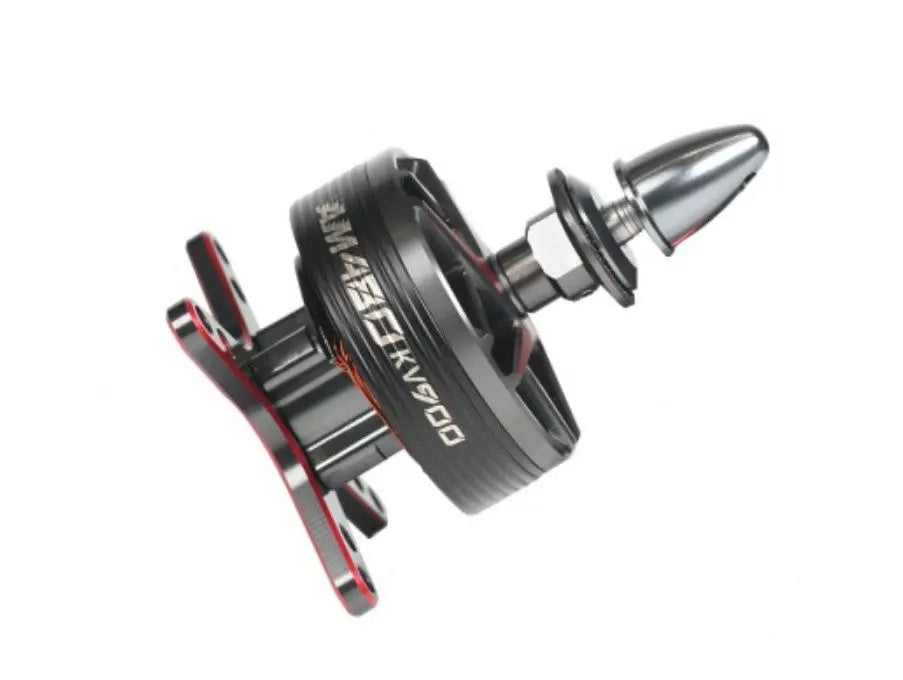

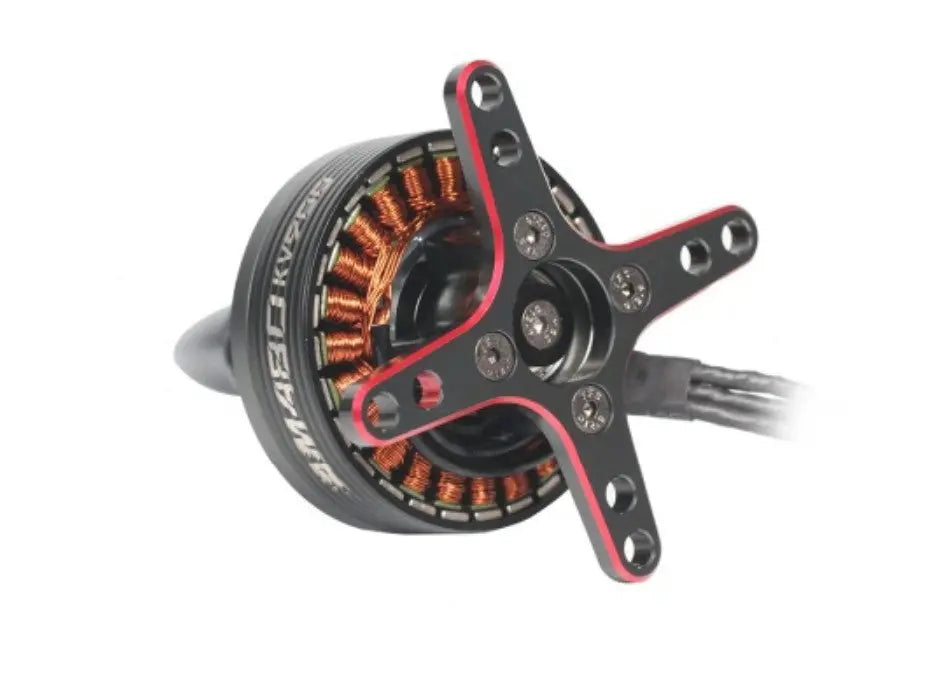

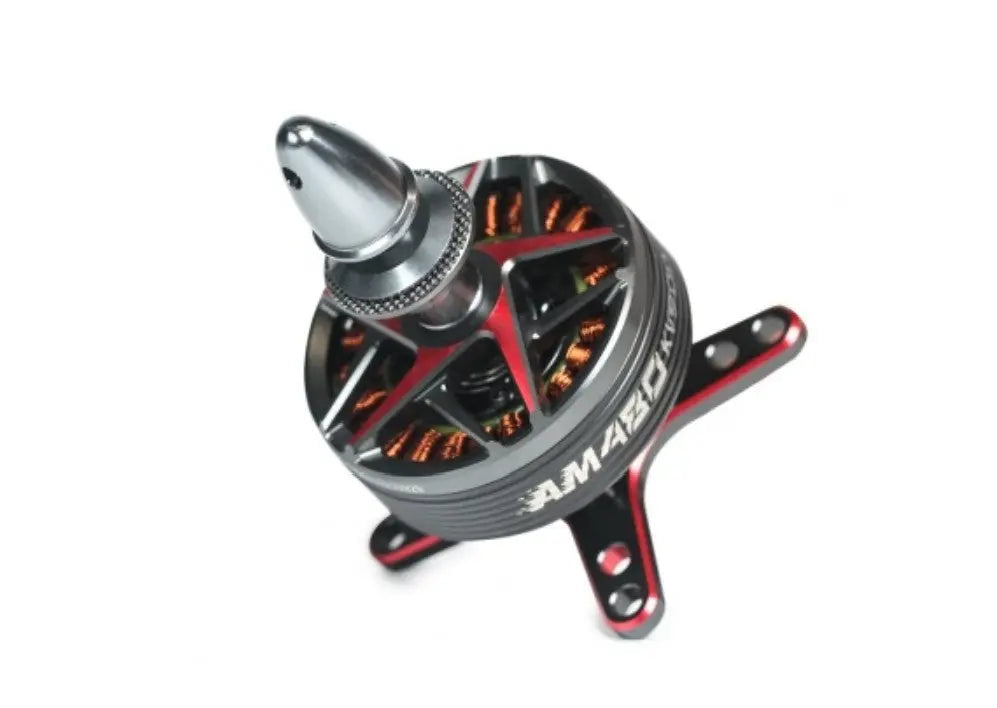

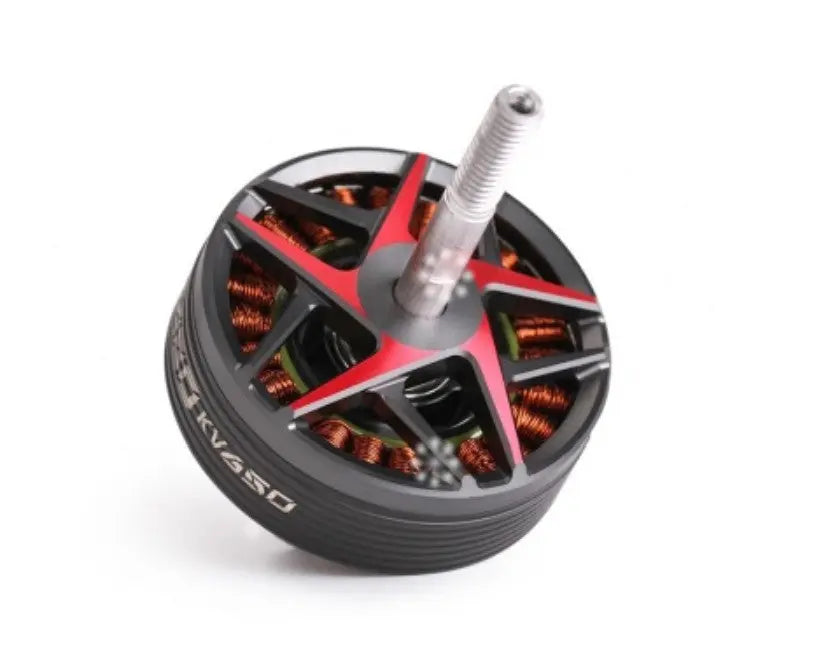

T-Motor / T-Hobby AM480 Brushless Motor (Version C)

T-Motor / T-Hobby AM480 Brushless Motor – 600KV & 900KV for 48–52" 3D RC Airplanes

The T-Motor / T-Hobby AM480 Brushless Motor is a lightweight, high-performance power system designed for 48–52 inch 3D RC airplanes, freestyle aircraft, and aerobatic models. Available in both 600KV and 900KV versions, the AM480 gives pilots the flexibility to choose the ideal motor setup for their preferred battery configuration and flying style.

Built around T-Hobby's large-diameter motor architecture, the AM480 delivers strong torque, rapid throttle response, and an excellent power-to-weight ratio. Its lightweight construction helps reduce overall aircraft weight while still providing the power needed for hovering, harriers, waterfalls, knife-edge flight, vertical climbs, and aggressive freestyle maneuvers.

The AM480 600KV is optimized for 5S–6S LiPo power, making it an excellent choice for pilots looking for strong torque and powerful vertical performance. Manufacturer testing has demonstrated static thrust approaching 3.9 kg (8.6 lb) with an appropriate propeller and power setup.

The AM480 900KV is optimized for 3S–4S LiPo batteries and offers higher RPM with extremely quick throttle response. This version is ideal for lightweight 3D builds where pilots want aggressive spool-up, fast transitions, and strong performance without the additional weight of a higher-cell-count battery system.

Both versions feature a lightweight hollow-shaft design and optimized motor construction to reduce unnecessary mass while maintaining durability and effective cooling during demanding aerobatic flight.

Key Features:

• Available in 600KV and 900KV configurations

• Designed for 48–52" 3D, freestyle, and aerobatic RC airplanes

• 600KV version: optimized for 5S–6S LiPo batteries

• 900KV version: optimized for 3S–4S LiPo batteries

• Approximate motor weight: 145 g including cables

• Large-diameter design for increased torque

• Fast throttle response for demanding 3D maneuvers

• Lightweight hollow-shaft construction

• Motor dimensions: approximately 49 x 70 mm

• 24N28P motor configuration

• 6mm shaft diameter

• Recommended ESC: T-Hobby AM66A

• Excellent power-to-weight ratio for lightweight aerobatic aircraft

AM480 600KV Specifications:

• Maximum rated power: approximately 960W

• Peak current: approximately 45A

• Internal resistance: approximately 35mΩ

• Static thrust approaching 3.9 kg / 8.6 lb with manufacturer-tested configurations

AM480 900KV Specifications:

• Maximum rated power: approximately 800W

• Peak current: approximately 60A

• Internal resistance: approximately 18mΩ

• Static thrust exceeding 3.1 kg / 6.9 lb with manufacturer-tested configurations

Whether you're building a 48", 50", or 52" electric 3D airplane, the T-Hobby AM480 600KV and 900KV motors provide the lightweight construction, strong torque, and responsive power delivery demanded by modern 3D and freestyle pilots. Choose the 600KV version for higher-voltage 5S–6S setups and strong torque, or the 900KV version for lightweight 3S–4S builds with fast RPM and aggressive throttle response.

Includes AM480 motor "Version C." 50mm in length.
